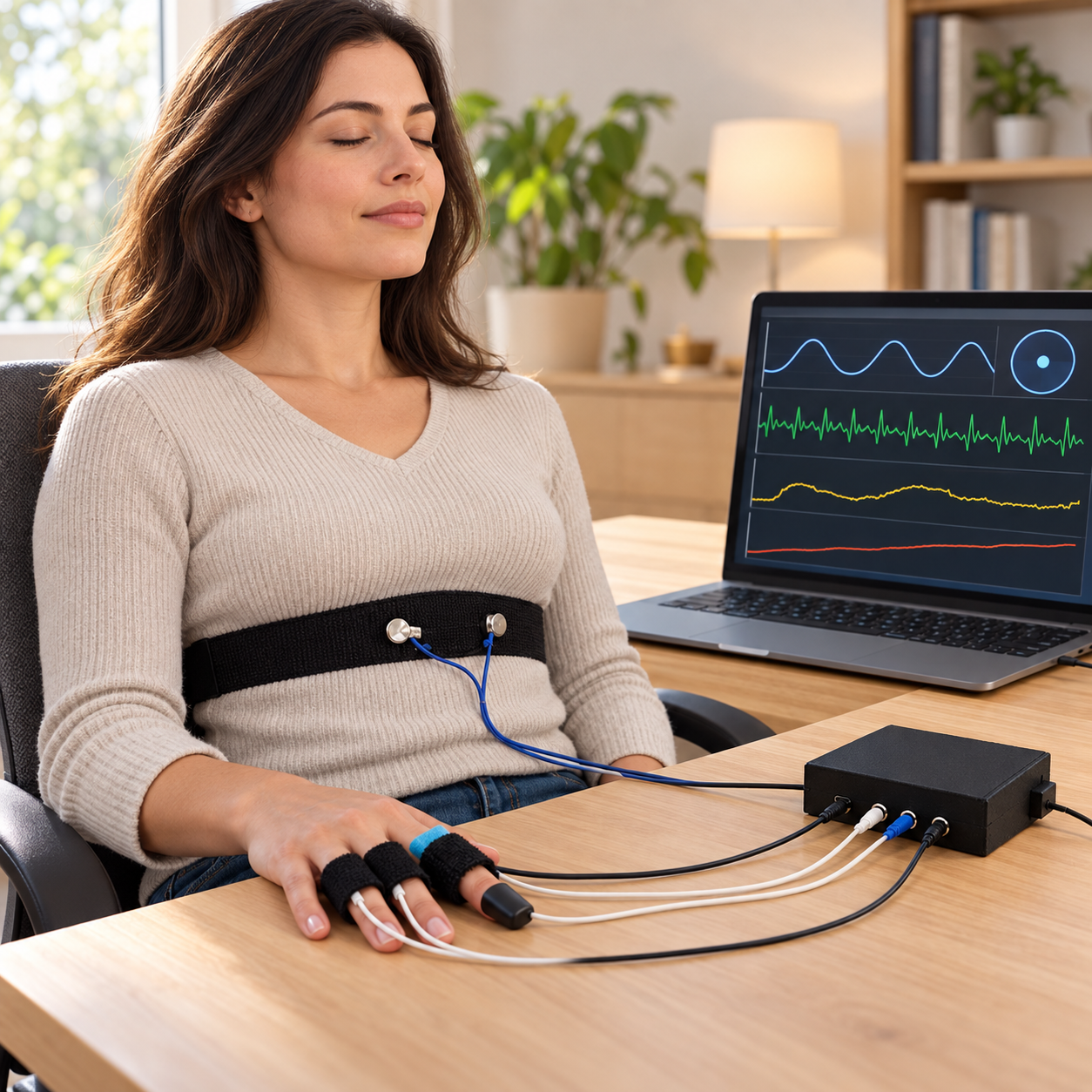

Follow pulse, skin conductance, temperature and breathing in one biofeedback session. This BioSignals 4-Sensor Wireless Kit combines a compact acquisition unit with four external sensors and software for personal training, professional biofeedback and research. View live responses, record sessions and export data for closer review.

Four sensors for coordinated feedback

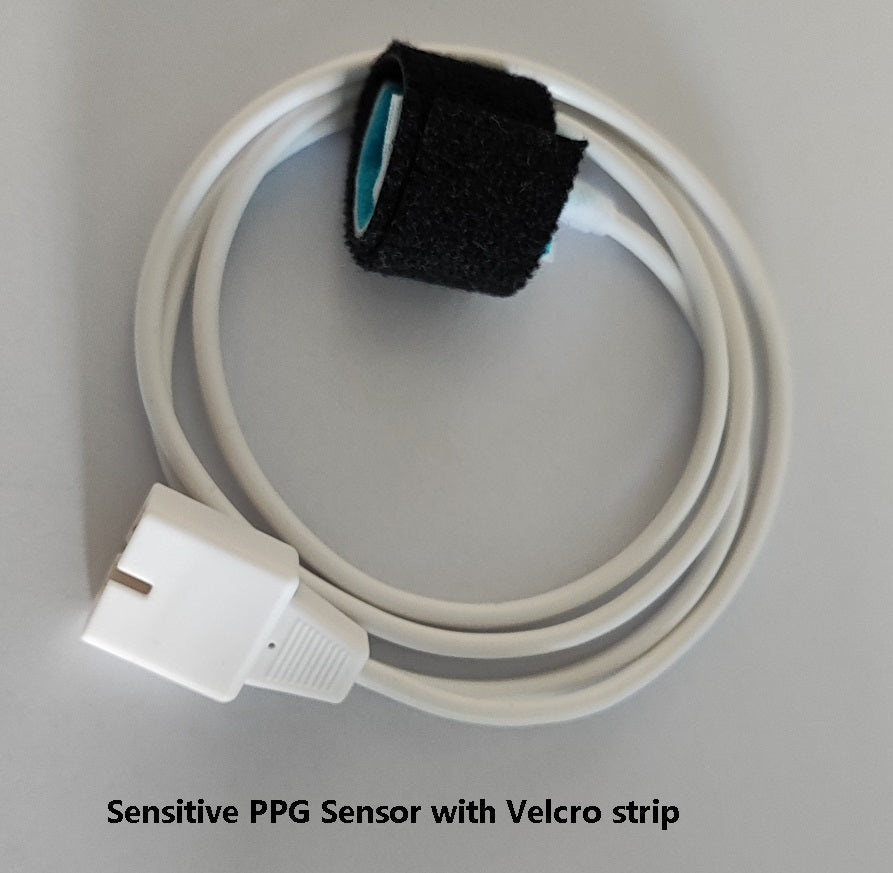

• PPG/BVP sensor: captures the pulse waveform for heart rate, inter-beat intervals and HRV analysis.

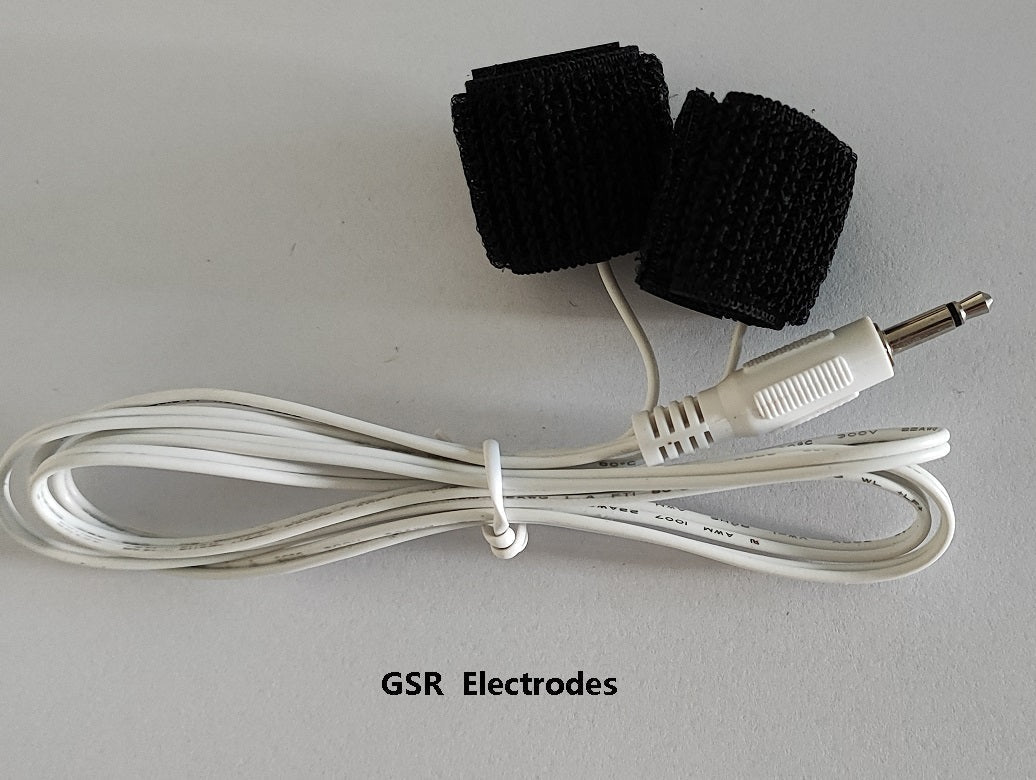

• GSR electrodes: measure changes in skin conductance at the fingers.
• Temperature sensor: displays peripheral temperature from 20.00°C to 45.00°C, with a listed resolution of 0.06°C.
• Breathing belt: records chest or abdominal movement during breathing exercises.

Record and review your sessions

The Windows PC software supports biofeedback training and research workflows, live visualization, adjustable signal settings, recording, and review of raw data and analyses. Export to CSV to work with session data outside the training interface.

• HRV analysis includes 40 indicators.
• The software includes a dynamic blood-pressure-change indicator derived from the pulse signal.
• Real-time data transfer rate: 2,400 bytes per second.

Connectivity and setup

Use BLE to connect to the Android or iPhone app and view live sensor data on your phone. The mobile apps support cloud-based data storage. An Android device can also supply power through a USB OTG connection. Initial hardware activation requires a PC; each unit has its own serial number.

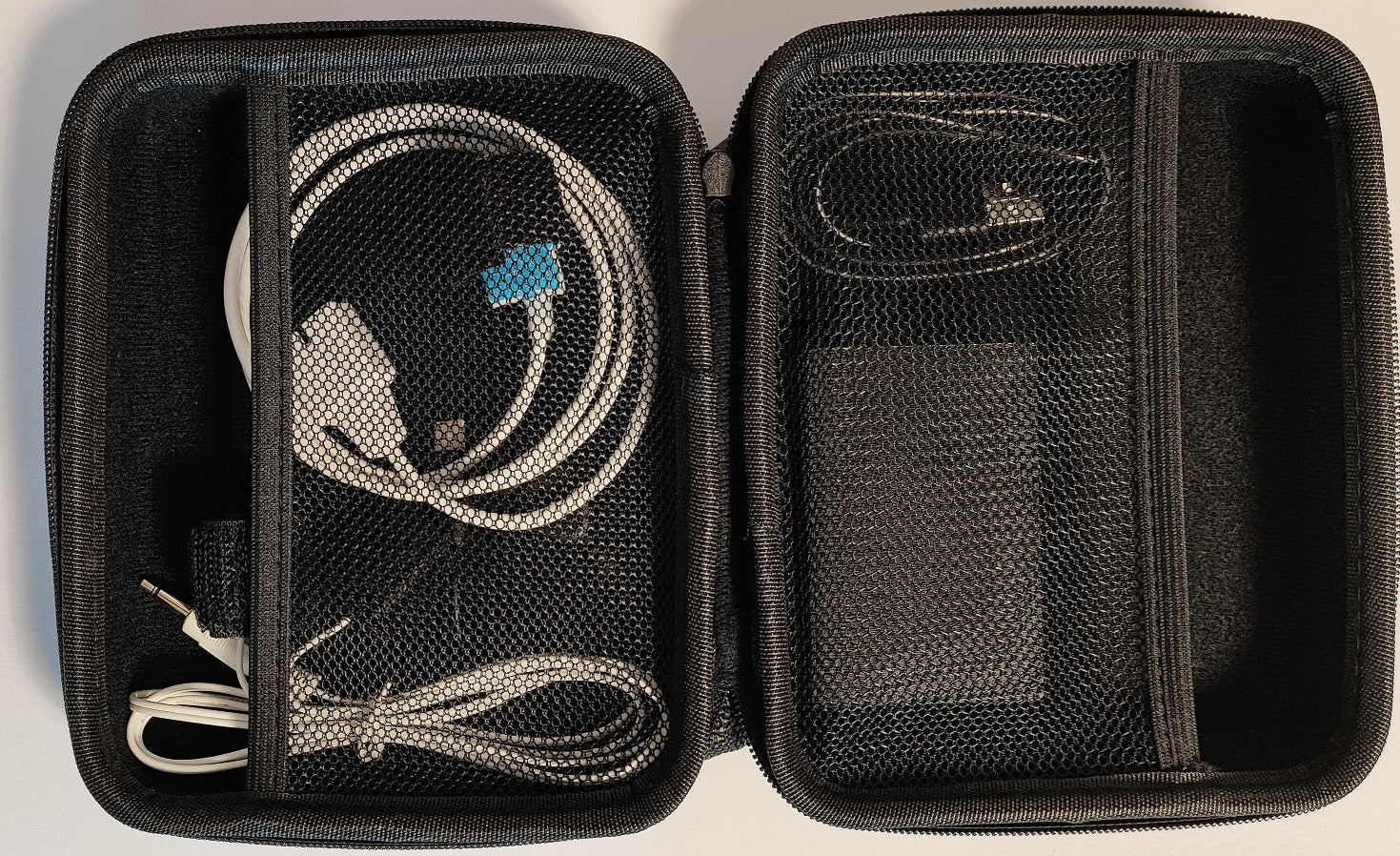

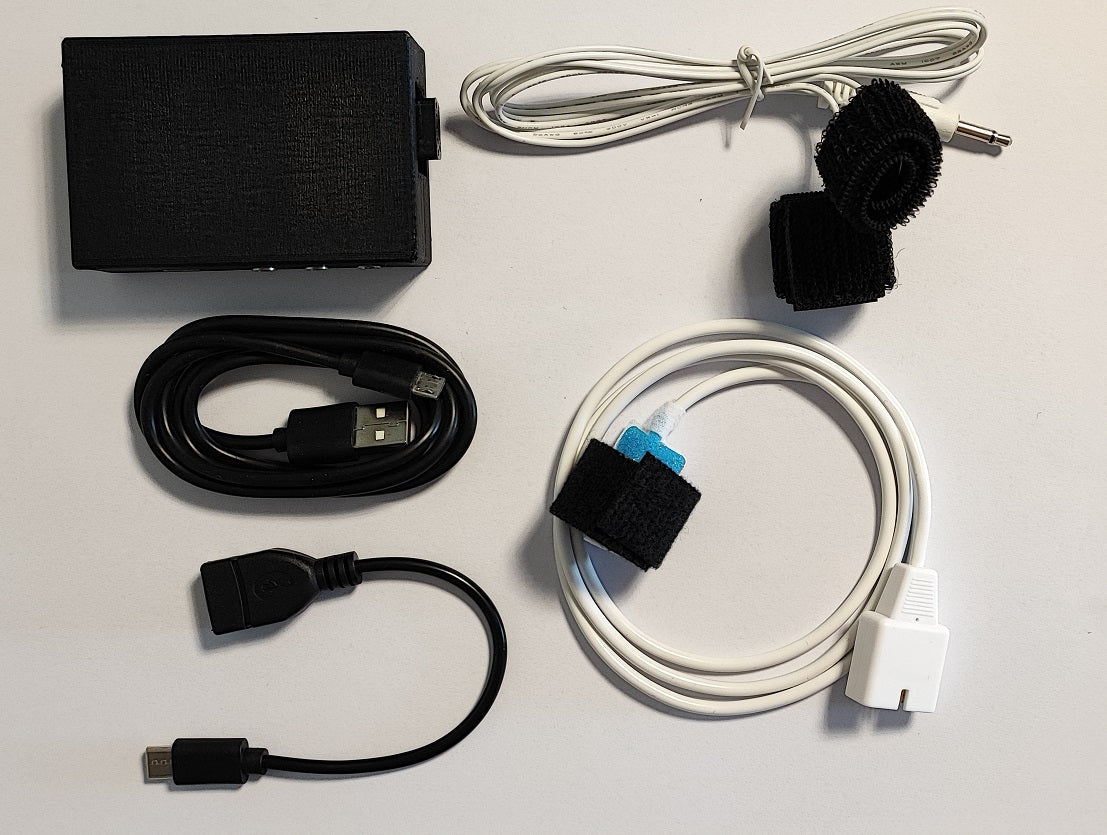

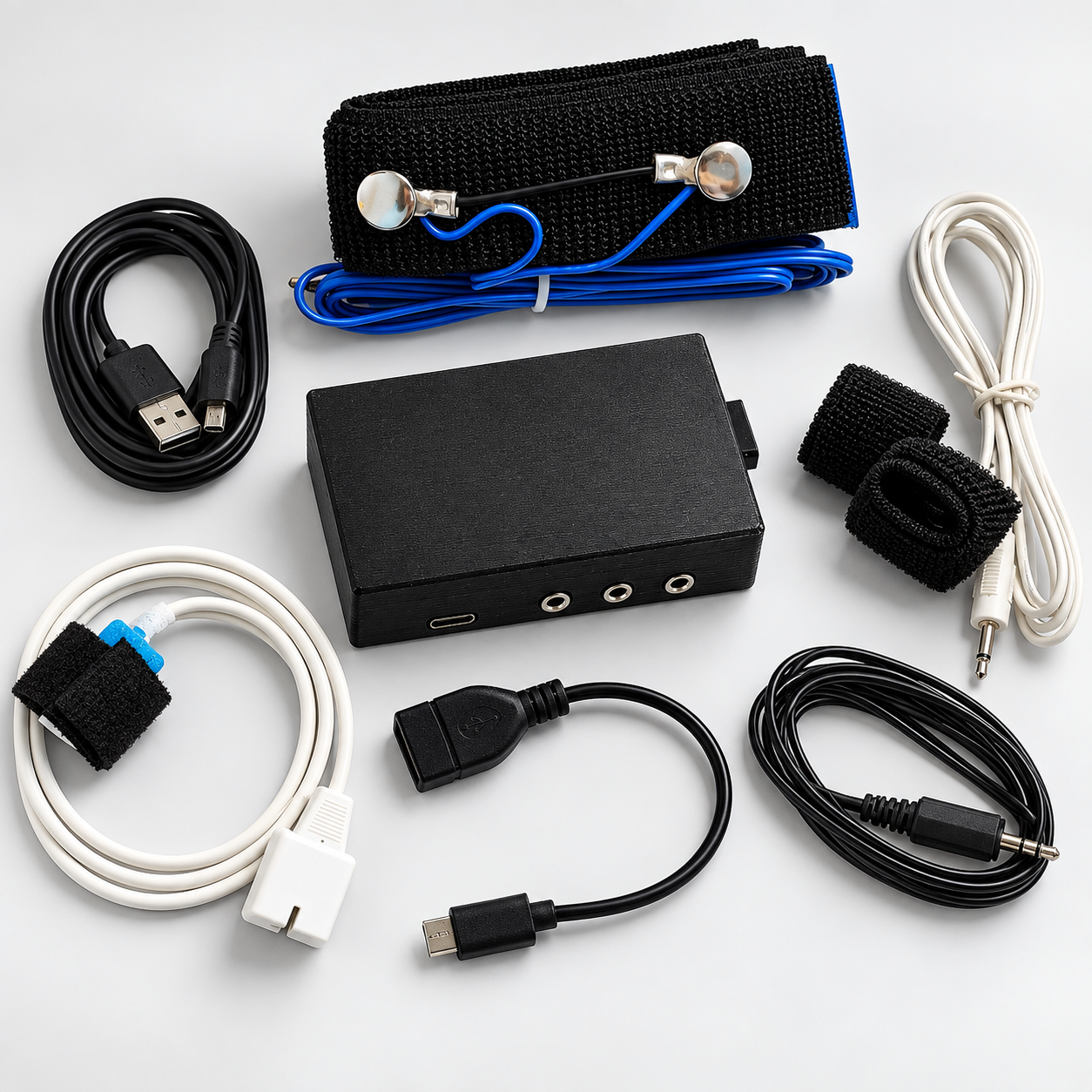

What is included

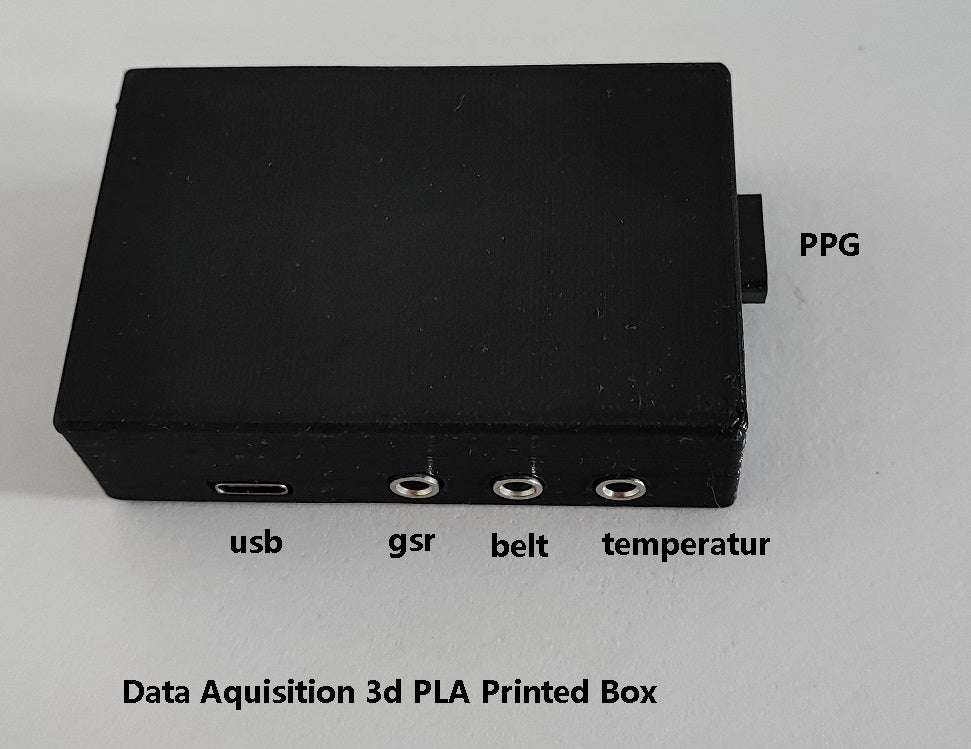

• Acquisition unit in a 3D-printed PLA enclosure.
• PPG/BVP sensor, GSR electrode cable with hook-and-loop bands, temperature sensor and breathing belt sensor.

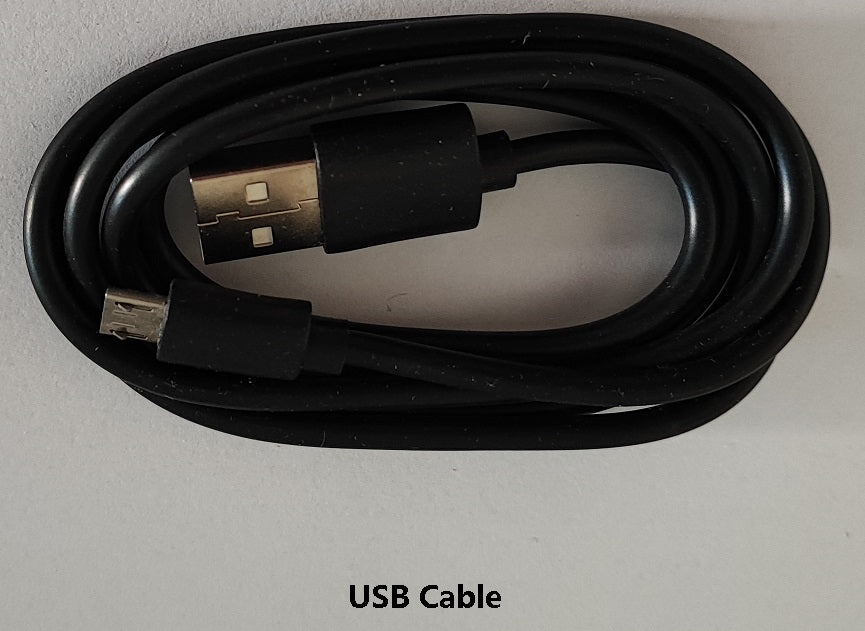

• 30 cm USB cable for PC connection.
• PC software for professional biofeedback, research and personal training.
• Read Signals and Raw Data Analysis Software.
• Android and iPhone personal training apps.

Order online

Choose this kit when you want breathing feedback alongside pulse, GSR and temperature. Add the 4-Sensor Wireless Biofeedback Kit to your cart.
